Storage

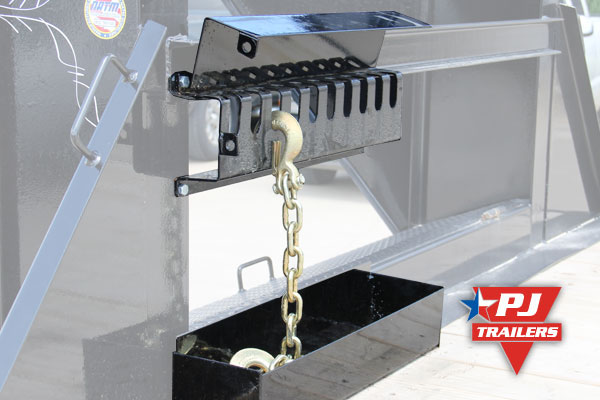

Bolt On Chain Rack

Features

• Rack stores up to 5 chains
• Bolts to c-channel behind risers and front gussets on PJ gooseneck trailers
• Can be locked to help prevent theft
• Can be mounted to driver or passenger side (two racks recommended for chains & boomers)
• Fit FS, FD, LD, FY, LY, & SD models

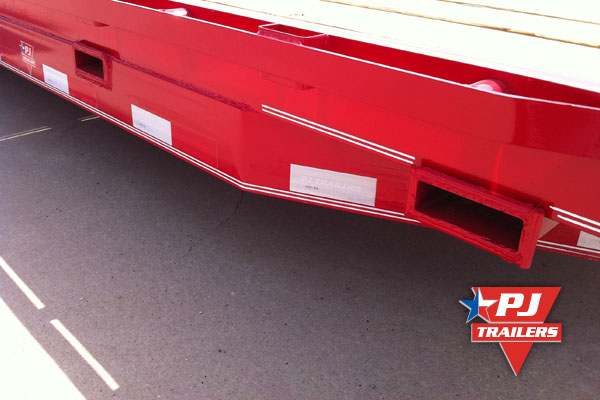

Pallet Fork Holders

Features

• Offers quick and convenient storage of pallet forks for skid steers and tractors
• Holders built out of 2" x 6" rectangular tubing

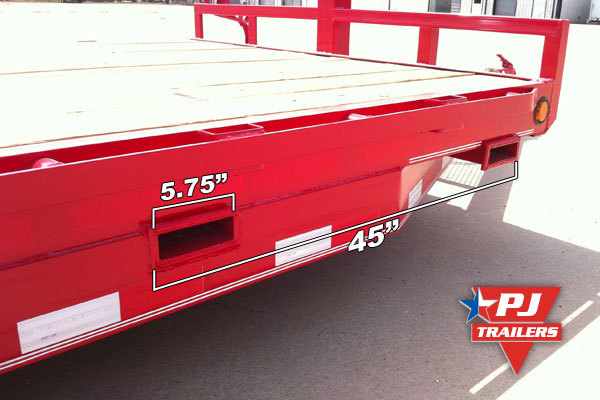

• Standard outside width of holders is 45"
• Openings are 5.75" wide
• Available on CC, T6, TF, and T7
• Forks can be secured with strap or chain
• Not available on goosenecks (would exceed 102" wide)

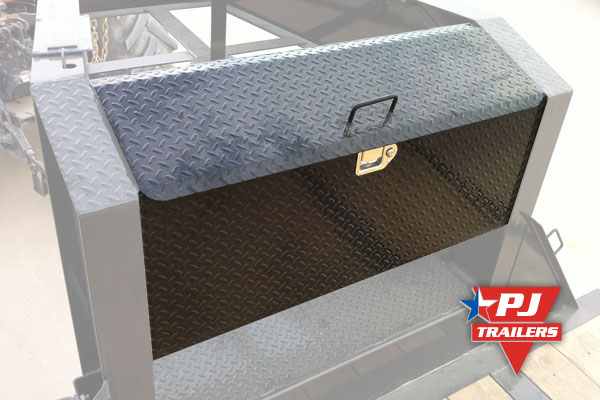

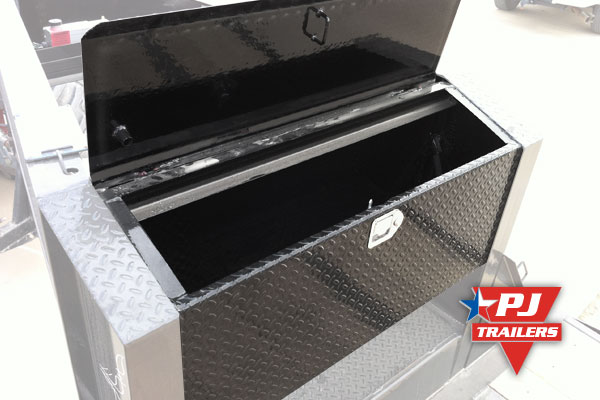

Gooseneck Riser Tool Box

Features

• Offers additional storage for chains, straps, binders, gloves, etc.
• Box faces the rear of the gooseneck and is accessible from the trailer deck
• Tandem dual gooseneck box outside dimensions 46"w x 11"d x 16"h
• Available on any PJ gooseneck trailer (most popular on FS, FD, LD, FY, LY, & CC)
• Can be used to enclose a winch with factory installed winch plate as base of box (hole and/or fairlead for cable must be cut by end user based on winch design)
• Option Code: -TB03

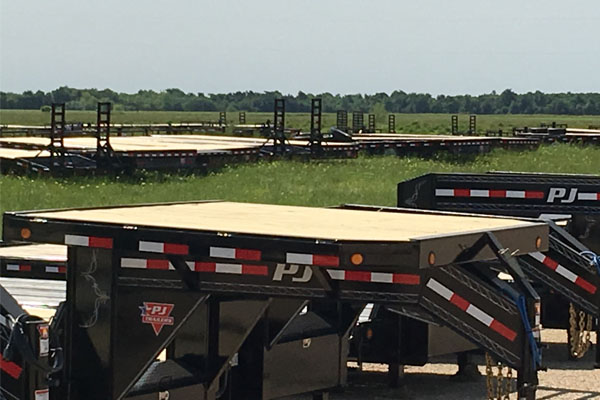

Features

Our deck on the neck option turns an area that is typically wasted into highly usable deck space. This option is quite popular for hauling attachments, tools, bales, and palleted cargo. It is also used on some hot-shot trailers since it allows the driver to carry additional cargo.

• Mitered corners for cab clearance
• Outside frame made from 6" x 2" tubing
• 3" Channel Crossmembers on 16" centers
• 102" wide (rail to rail) x 96" long
• Approximate weight: 450 lbs/204 kg
• Includes clearance lighting
• Includes Stake Pockets, Rubrail, & Pipe Spools
• D-rings & slide track w/ ratchets can be added

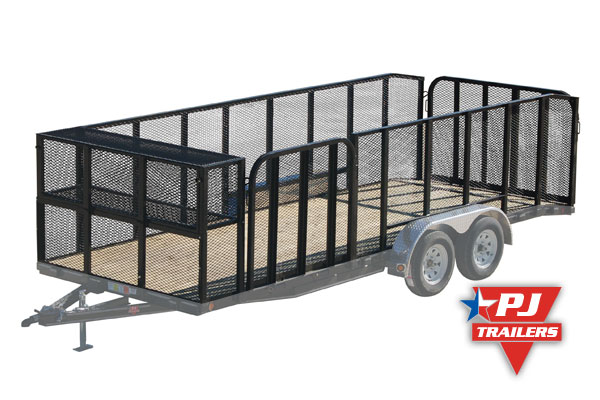

Landscape Trailer Sides

We offer both 2 ft & 4ft expanded metal sides on our channel frame utility trailers (U6, U7, & U8). These sides are most popular for landscaping, hauling brush, and ATV/UTV use.

• Fits U6, U7, & U8 Channel Utility Trailers
• Sides bolt-on through stake pockets
• 2ft Sides Option Code: 2
• 4ft Sides Option Code: 4
• Other popular options to order with landscape sides include a side gate and landscape cage.

Expanded Metal Landscape Toolbox

Features

Our landscape tool boxes mount at the front of utility trailers and are offered in 60", 77", or 83" widths (dependent on the width of the trailer). This cage is great for storing gas cans, trimmer line spools, shovels, and more.

• Fits U6, U7, & U8 Channel Utility Trailers
• Requires either 2 or 4 ft expanded metal sides
• Cage door uses lynch pins that can be replaced with locks
• Landscape Toolbox Option Code: C

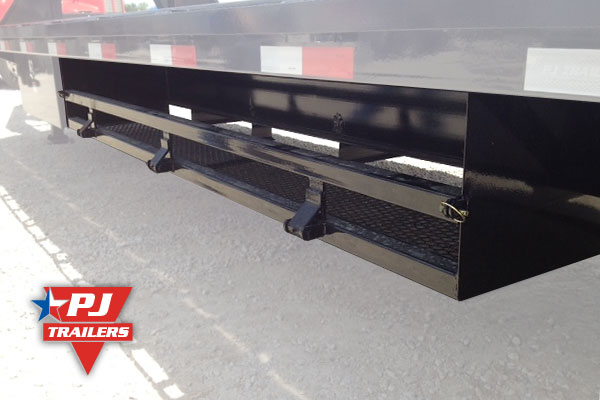

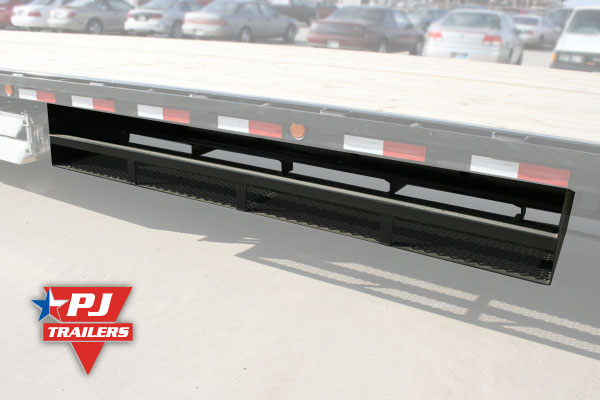

Side Mount Wood Rack

Features

Side mount wood racks (aka dunnage racks) are a great place to store your 4x4 lumber, commonly used when hauling pipe. This 8 ft rack mounts under the deck and is welded to the main beam of the trailer. This option is very popular on purpose built hot shot trailers.

Update:

We now offer a second wood rack option that has a hinged door. This allows you to drop the door to store bulky items like tarps and toolboxes in the rack.

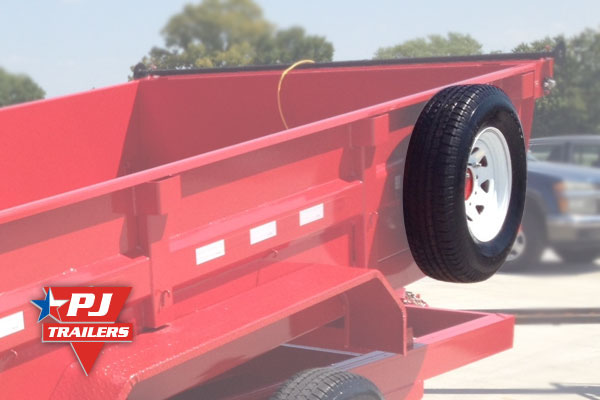

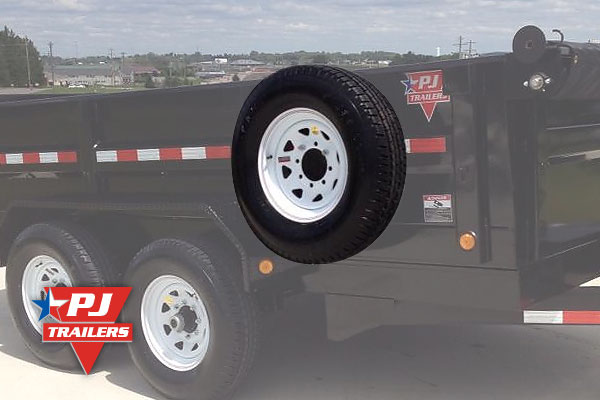

Dump Spare Tire and Mount

Features

The dump spare tire and mount option is a full size spare that is installed in front of the fender on the passenger side just below the dump side support. The spare tire and mount can also be mounted on the driver side if requested.

Trailer Models: D7, D9, DL, & DJ

Gooseneck Riser Tool Box

Features

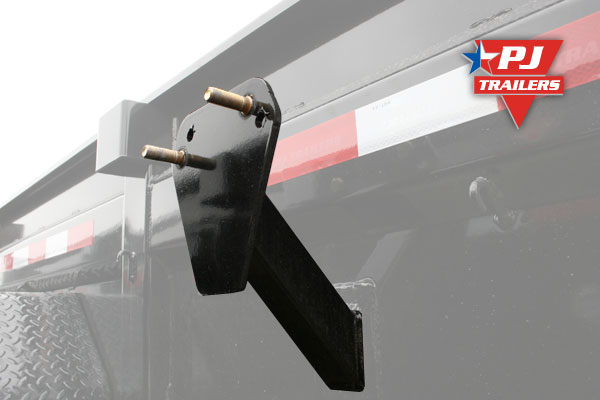

The dump spare tire mount is installed in front of the fender on the passenger side (unless driver side is requested) just below the dump side support.
