Trailer Winch Guide

Trailers Winch Guide Whether you a need to winch a old tractor from a pasture or pull a friend out of a ditch, trailer winches can be a life saver. Trailer winches have literally thousands of recreational and commercial uses. Once you add a winch to your trailer, you will wonder how you ever did without. We currently offer both Superwinch and Warn winches for our trailers. We typically recommend the 8k winches for most carhauler and tilt trailers and the 12k/18k winches for gooseneck, pintle, and heavy tilt trailers. If you would like to see mounting plate locations please view our winch plate guide.
- Trailer Models: B5,B6,B8,C5,CC,C8,TF,TH,TM,T6,T7,T5,P7,& P8
  - Option Code: -WN95
  - Economy Model
  - 9,500 lb. (4,309 kg) pulling capacity (single line)
  - Weather Sealed 5.2 HP Motor
  - Heavy Duty 3 Stage Gearbox
  - Heavy Duty Drum Supports
  - Weather Sealed Solenoids
  - Severe-Duty Textured Finish
  - Heavy-Duty Rubber Hand-held Remote
  - Stainless Steel Tie Bars and Hardware
  - Ergonomically Shaped Freespool Control
- Trailer Models: FS,FD,LD,SD,SY,LY,FY,F8,TD,T8,T9,T5,T7,C8,& B8
  - Option Code: -WN12
  - 12,500 lb. (5,670 kg) pulling capacity (single line)
  - Sealed 6 hp (4.48 kw) Series Wound Motor
  - 2-Stage Planetary and 2-Stage Spur Gearing
  - Gear Ratio 148:1
  - Vented, Sealed Submersible Solenoid with 3-Year Warranty
  - Clutch Free-spooling Clutch/Pull and Turn
  - Automatic/100% Load Holding Brake (outside of drum)
  - 15' Sealed Ergonomic Hand-held with Coiled Cord
  - 10" x 4.5" (254mm x 114.3mm) Mounting Plate
  - Wire Rope 3/8" x 85' (9.5mm x 26m)
- Trailer Models: FS,FD,LD,SD,SY,LY,FY,F8,TD,T8,T9,T5,T7,C8,& B8

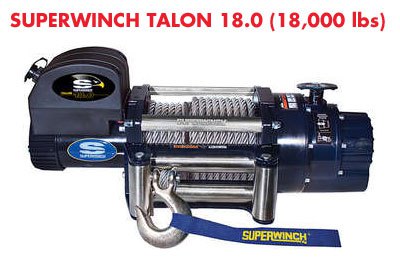

  - Option Code: -WN18
  - 18,000 lbs (8,165 kg) rated line pull
  - Sealed 6 hp (4.48 kw) Series Wound Motor
  - 2-Stage Planetary and 2-Stage Spur Gearing
  - Gear Ratio 346:1
  - Vented, Sealed Submersible Solenoid with 3-Year Warranty
  - Clutch Free-spooling Clutch/Pull and Turn
  - Automatic/100% Load Holding Brake (outside of drum)
  - 15' Sealed Ergonomic Hand-held with Coiled Cord
  - 10" x 4.5" (254mm x 114.3mm) Mounting Plate
  - Wire Rope 1/2" x 90' (13mm x 27.43m)
- Trailer Models: B5,B6,B8,C5,CC,C8,TF,TH,TM,T6,T7,T5,P7,& P8

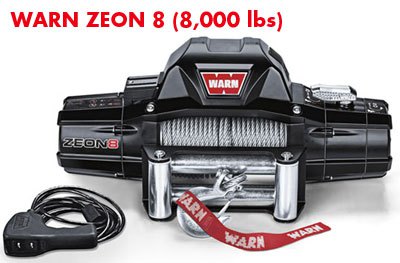

  - Option Code: -WN08
  - 8,000 lb. (3630 kg) single-line pulling capacity
  - Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
  - Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
  - 100 ft of 5/16" galvanized steel wire rope
  - WARN Limited Lifetime Warranty

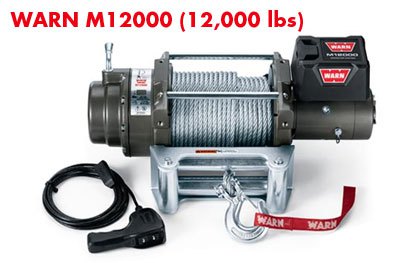

- Trailer Models: B5,B6,B8,C5,CC,C8,TF,TH,TM,T6,T7,T5,P7,& P8
  - 12,000 lb. (5,440 kg) pulling capacity (single line)
  - Large frame winch design is designed to handle heavier winch loads
  - Series-wound, high-speed motor provides fast line speed and strong pulls
  - Brake provides superior control while winching
  - Remote-mount control box allows for various mounting options
  - Durable 3-stage planetary geartrain for smooth, reliable, operation
  - Remote control with 12' (3.7m) lead
  - Chip-resistant powder-coated finish
  - 125' of 3/8" (38m of 9.5mm) diameter wire rope

Get a Quote

Winch Plate Guide

One of the most popular options over the past few years are factory installed winch plates. Adding a winch to your trailer makes them especially useful for loading equipment and vehicles cannot power themselves. This guide shows you photos and models for the most popular winch plates we build.

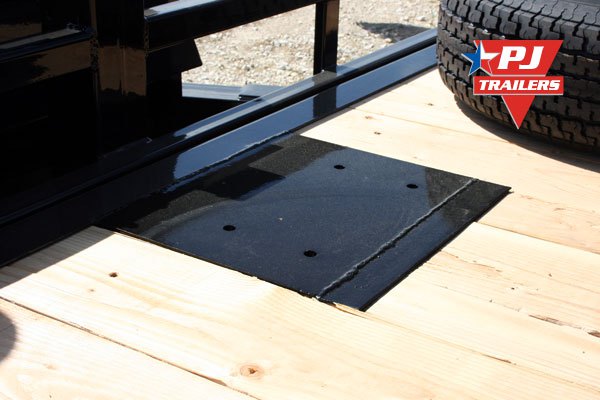

- Winch Plate Bolt Pattern: 10.0 in x 4.5 in

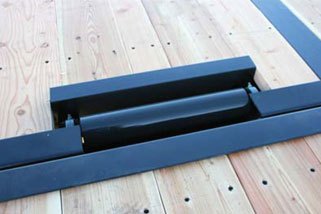

- Winch Roller
- Car Hauler Winch Plate - (Bumper - pull CC, C8, B6, B8)
- Equipment Tilt Winch Plate - (Bumper - pull T6, TF)

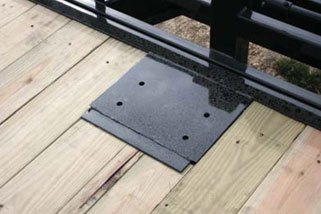

- Deckover Tilt Winch Plate - (Bumper - pull T8, T9)
- Deckover Winch Plate - (Bumper - pull F8)

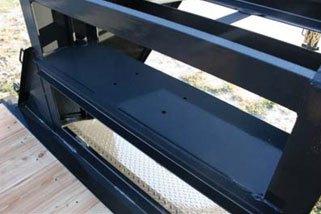

- Gooseneck Winch Plate - (FD, LD, FS, FY, LY)
- Gooseneck Car Hauler Winch Plate - (CC, C8, B6, B8)

Get a Quote

Tool Boxes

PJ Trailers Tool Box Guide

We have compiled a tool box guide that contains photos, drawings, and applications for our standard and optional tool boxes.

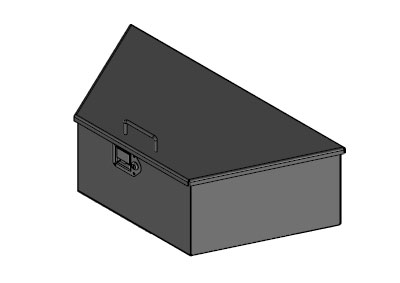

- Bumper Pull Trailer Toolbox 12ga

  PJ Part #160317 (ASTBBP)
  - Trailer models
  - Standard: none
  - Optional: cc, c8, b6, b8, t6, f8, fs, fd, ld, l5, l6, sy, fy, ly, td, pt (bumper-pull only)

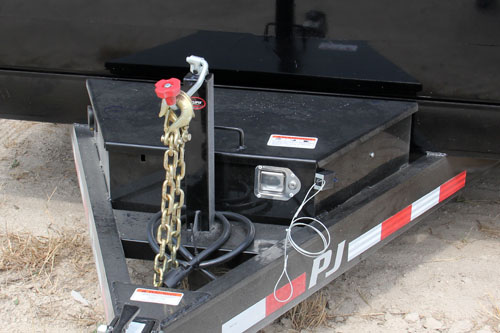

- Bumper Pull Dump Trailer Toolbox 12ga

  PJ Part #160301 (ASTBBPHYD)
  - Trailer models
  - Standard: t8, t9, tf, md, mt, dn, d8, d9, d7, d2, d5, tm (bumper-pull only)

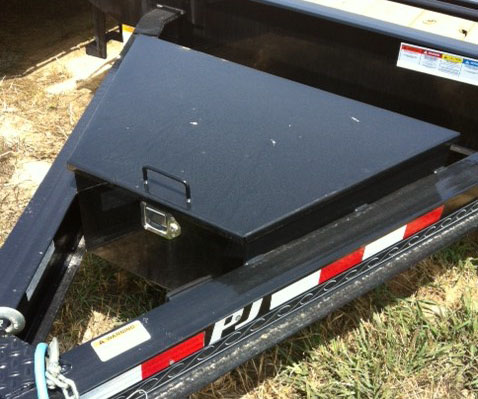

- Deckover Tool Box

  PJ Part #160338 (ASTBBPF8)
  - Trailer models
  - Standard: none
  - Optional: F8 (bumper-pull only)
- Low-Pro Dump Toolbox 12ga

  PJ Part (ASTBBPHYDDL)
  - Trailer models
  - Standard: DL, DL (bumper-pull only)

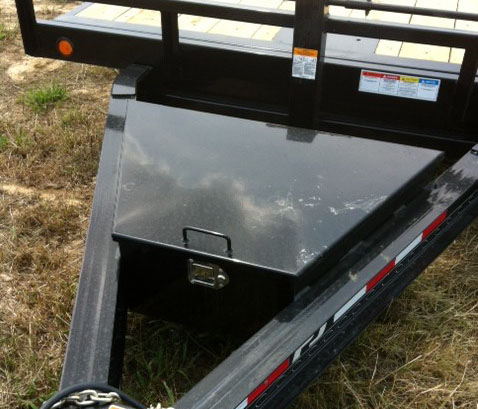

- Deckover Tilt Divided Tool Box

  PJ Part #160339 (ASTBBPT8)
  - Trailer models
  - Standard: none
  - Optional: T8, T9 (bumper-pull only)

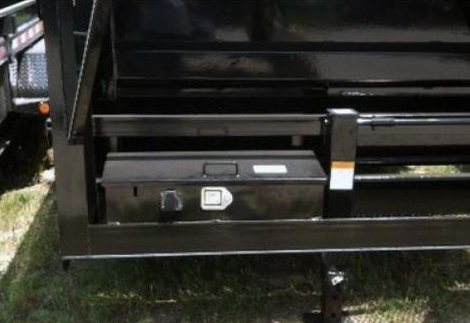

- Gooseneck Dump Toolbox

  PJ Part #160300 (ASTBGNDT)
  - Trailer models
  - Standard: D7, D9, DJ, DL gooseneck w/1 jack
- Side-mount Tool Box Hyd. 30x14x15"

  PJ Part (ASTBSM30HYD)
  - Trailer models
  - Standard: FY, LY, SY, TD, T9

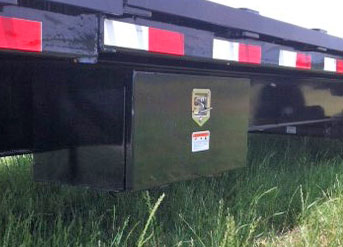

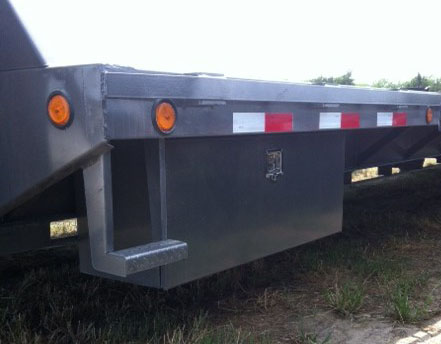

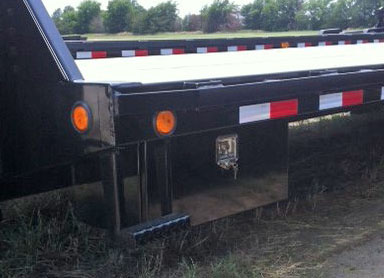

- Side-mount Tool Box 30x14x15"

  PJ Part #160304 (ASTBSM30)
  - Trailer models
  - Standard: Deckover Air Rides
  - Optional: LD, F8, LY, T9, T8, DS, Truckbeds
- Side-mount Tool Box 45x17.5x15"

  PJ Part #160303 (ASTBSM)
  - Trailer models
  - Standard: none
  - Optional: SD, FS, FD, SY, FY, TD, DD

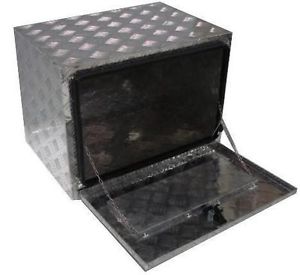

- 18" Truck Bed Toolbox

  PJ Part #160306 (ASTBTOOLBOX18)
  - Trailer models
  - Standard: none
  - Optional: Truckbeds
- Side-mount Tool Box 72"x14"x15"

  PJ Part (ASTBSM72)
  - Trailer models
  - Standard: none
  - Optional: FD

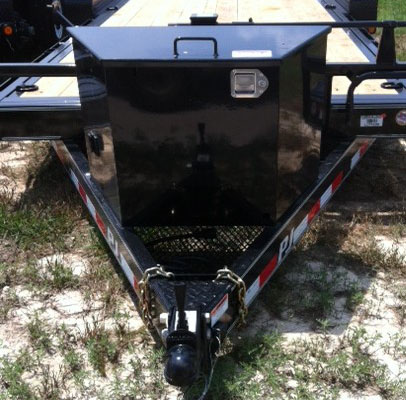

- Double Decker Tool Box 12ga

  PJ Part (ASTBBPDD)
  - Trailer models
  - Standard: none
  - Optional: CC, T6, TF, DJ, DL, D7, D9, DN, D8 (bumper-pull only)
- Bumper Pull Tool Box 16ga Utility

  PJ Part #160293 (ASTBBPUTL)
  - Trailer models
  - Standard: none
  - Optional: B5, C5, T5, U7, U8, U6
